PROFILE MATERIAL	P.V.C	ALUMINUM	WOOD
WIDTH (L)18,22mm, HEIGHT(H) 40mm	LS-150	LS-150A	LS-150W

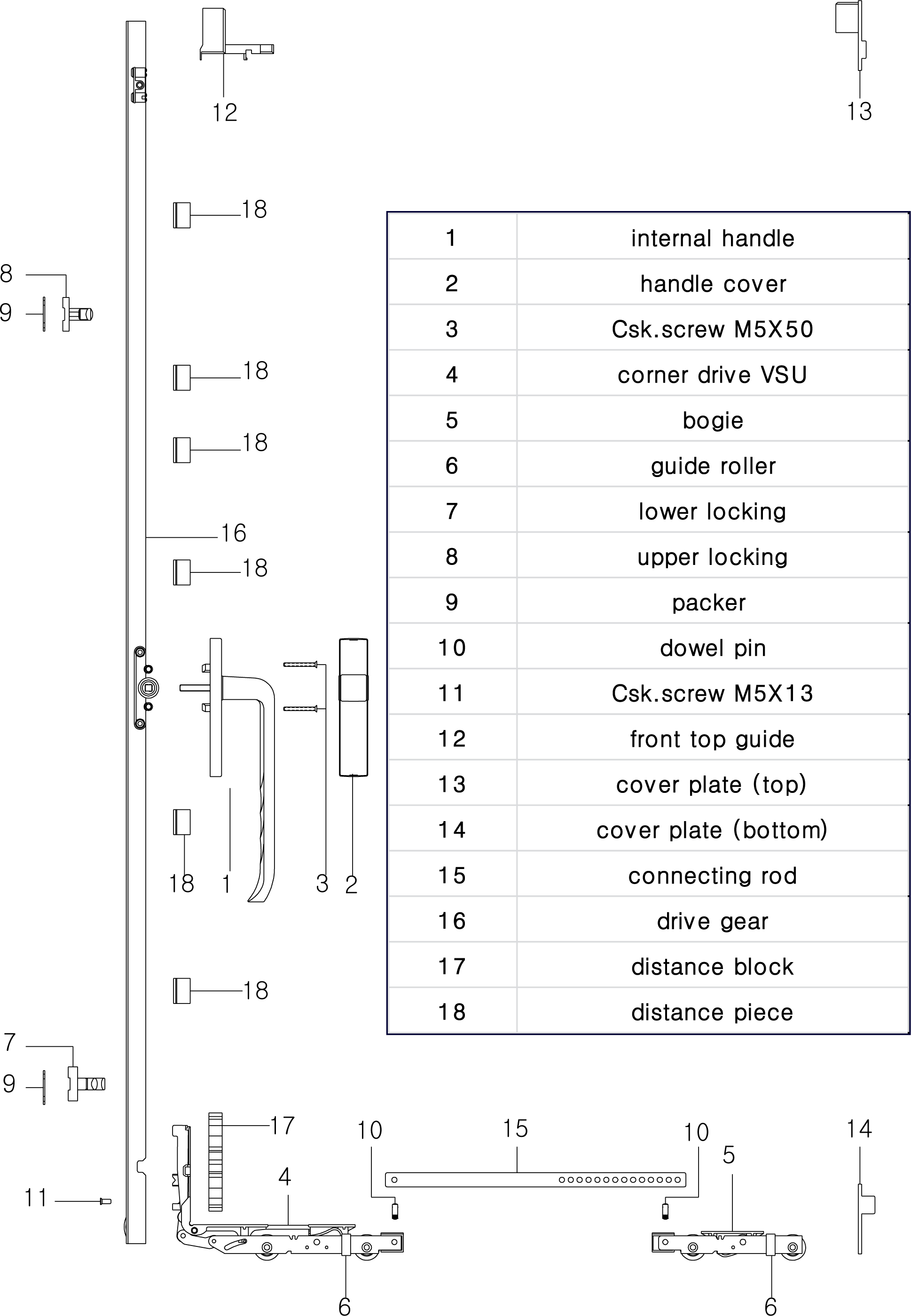

pas.	Qty	Description			Color	Part No.
	1	internal handle carton consists of:			Silver	L150 Silver
1	1	internal handle HS				L150-010
2	1	handle cover				L150-020
3	2	Csk. Screw M5X50 sash thickness 68mm				L150-030
	1	basic carton consists of:				L400000
4	1	corner drive VSU HS			Yellow, Silver		404013
5	1	bogie HS			Yellow,Silver		404014
6	2	roller guide			White		846003
	1	additional carton consists of:				L841100
7	1	lower locking			Yellow		841471-010
8	1	upper locking			Yellow		859025-010
9	2	packer			Yellow		841419 A
10	2	dowel pin		6x16	Silver		823132
11	1	Csk. Screw M5X13			Silver		800850
12	1	front top guide			Black		845000
13	1	cover plate (top)			Black		844001
14	1	cover plate (bottom)			Black		844002
		connecting rod (Yellow,Silver)	size	length(in mm)	FB(in mm)	217702
15	1		130	898	570 bis 1350
			180	1398	1351 bis 1850
			230	1898	1851 bis 2350
			320	2748	2351 bis 3200
		drive gear (Silver)	size	FH(in mm)	handle pos.(mm)	404012-000
16	1		130	900 to1290	280~380
			170	1190 to1690	400~500, 800
			200	1691 to 2090	800~1100
			230	2091 to 2390	800~1100
			260	2391 to 2690	800~1100
17	1	distance block			Silver	857465
18	8	distance piece			Silver	855966
